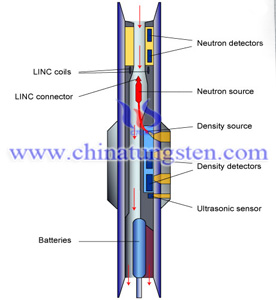

The logging-while-drilling tool provides real-time apparent neutron porosity, formation bulk density and photoelectric factor data to characterize formation porosity and lithology while drilling. Due to its high density, excellent absorption behaviour against radiation and environmental friendly characteristics, tungsten alloy can be widely used to produce tungsten radiation shield in density detector of logging-while-drilling.

The radioactive sources are safely contained in the drill collar and are connected to each other by a tungsten radiation shielding that allows fishing by wire line through the drill pipe.These nuclear measurements are borehole compensated for improved accuracy. 360-degree images of density and porosity result from the rotation of the tungsten density detector.

  Tungsten Alloy Manufacturer & Supplier: Chinatungsten Online- http://www.tungsten-alloy.com
  Tel.: 86 592 5129696; Fax: 86 592 5129797
  Email:  sales@chinatungsten.com
  Tungsten & Molybdenum Information Bank: http://i.chinatungsten.com
  Tungsten News & Tungsten Prices, 3G Version: http://3g.chinatungsten.com
  Molybdenum News & Molybdenum Price: http://news.molybdenum.com.cn

Using reactive sputtering method producing tungsten trioxide nano films found the average particle size diameter is less than 100nm. The grains size of the tungsten trioxide (WO₃) nano films are related to magnetic irradiation conditions and treatment temperature. After studied showed that sputtering gas volume and proportion play an important role at increase gas sensing property of nano WO₃ film.

By XPS analysis, although proportions of mixed sputtering gas (O₂ / Ar) is different, but the combination of W4f_{7 / 2} and Ols energy unchanged, namely 35.5eV and 530.6eV. And WO₃ film stoichiometric not change, but when the O₂ partial pressure is difference the WO₃ nano-film microstructure will be a great change, this phenomenon can be explained by reduction aggregate. That is when O₂ partial pressure increases the crystal grain size becomes smaller. However, if the O₂ partial pressure is greater than 50% then it will result porosity reduced, thereby reducing the sensitivity of original, indicating that the optimum sputtering mixing ratio is 1: 1. So the sputtering mixed gas (O₂ / Ar) ratio is 1: 1 which using DC reactive magnetron sputtering to produce WO₃ nano film has best gas sensing properties.

Tungsten Manufacturer & Supplier: Chinatungsten Online - http://www.chinatungsten.com
Tel.: 86 592 5129696; Fax: 86 592 5129797
Email: sales@chinatungsten.com
Tungsten & Molybdenum Information Bank: http://i.chinatungsten.com
Tungsten News & Tungsten Prices, 3G Version: http://3g.chinatungsten.com
Molybdenum News & Molybdenum Price: http://news.molybdenum.com.cn


Tungsten has a melting point 3410 °, the boiling point of copper 2 567 ℃. Because copper is much higher than the melting point of tungsten and tungsten and copper boiling immiscible, thus tungsten copper alloy rod casting method can not be used to the system. Melt infiltration method prepares tungsten copper rod can improve the compactness of tungsten copper rod and other material properties.

Principle of melt infiltration method prepares tungsten copper rod is that the use of a capillary force, the low melting point metal wetting liquid filling certain density and strength of the porous matrix skeleton. The molten metal flow to fill the gap along the porous particles of tungsten skeleton pore, resulting in denser materials, greatly improve the toughness of tungsten copper rods.

There are some drawbacks of melt infiltration method prepares tungsten copper rod: Because liquefied copper tungsten skeleton pore capillary action alone infiltration densification therefore slower, less densification. Copper solidified coarse and distribution is not uniform, but will make high temperature sintering tungsten particles grew up together, forming a thick uneven tissue.

Tungsten Manufacturer & Supplier: Chinatungsten Online - http://www.chinatungsten.com
Tel.: 86 592 5129696; Fax: 86 592 5129797
Email: sales@chinatungsten.com
Tungsten & Molybdenum Information Bank: http://i.chinatungsten.com
Tungsten News & Tungsten Prices, 3G Version: http://3g.chinatungsten.com
Molybdenum News & Molybdenum Price: http://news.molybdenum.com.cn

Low temperature sintering infiltration prepares tungsten copper rod is an important method for the preparation of tungsten copper rod. Principle of low temperature sintering infiltration prepares tungsten copper rod is that tungsten powder mixed with a small amount of copper powder and sintering additives (usually nickel powder), at lower temperatures, pre-sintered in hydrogen, and then sintered materials were bleeding copper. In this method of preparing tungsten copper rod it should be noted that the reduction in the sintering process and degassing, and vacuum infiltration of copper and high vacuum degassing process, in order to obtain a vacuum tungsten copper rod low gas content.

Advantages of low temperature sintering infiltration prepares tungsten copper rod are that a simple process for the manufacture of copper content greater than 20% of tungsten copper alloy rod. Disadvantages of low temperature sintering infiltration prepares tungsten copper rod lie in that higher raw material content requirement, tungsten skeleton strong as high-temperature sintering, ablation phenomenon is easy to produce.

Tungsten Manufacturer & Supplier: Chinatungsten Online - http://www.chinatungsten.com
Tel.: 86 592 5129696; Fax: 86 592 5129797
Email: sales@chinatungsten.com
Tungsten & Molybdenum Information Bank: http://i.chinatungsten.com
Tungsten News & Tungsten Prices, 3G Version: http://3g.chinatungsten.com
Molybdenum News & Molybdenum Price: http://news.molybdenum.com.cn

Tungsten powder is the main material of cemented carbide producing. Its particle size and even distribution is the key of producing carbide. Because violet tungsten oxide has a good performance so in recent years the research of purple tungsten expands slowly. And after studies found violet tungsten oxide is the most appropriate for producing ultrafine nano crystalline tungsten powder. This article introduces using violet tungsten oxide as raw materials, through optimized the hydrogen reduction production technology and controlling the reduction temperature, push the boat speed, boat loading capacity and hydrogen flow and other processes to achieve mass production of nano tungsten powder. Producing process as follows:
1. Putting dried ammonium tungstate into industrial rotary kiln calcination with quantitative, since APT under thermal decomposition will producing NH3 which at high temperatures will again break down the H₂. So WO₃ will resort into violet tungsten oxide (WO_2.72), namely violet tungsten oxide self-reduction.
2. Place the prepared violet tungsten oxide into 15 tube reduction furnaces with appropriate amount of loading boat and intervals. After three furnace low-temperature preheat then put it into high temperature zone processing high flow dry hydrogen control vapor transport.
3. Inverse hydrogen reduction producing nanometer tungsten powders of different particle size.
4. After cooling 30min released, screening, testing.

Tungsten Manufacturer & Supplier: Chinatungsten Online - http://www.chinatungsten.com
Tel.: 86 592 5129696; Fax: 86 592 5129797
Email: sales@chinatungsten.com
Tungsten & Molybdenum Information Bank: http://i.chinatungsten.com
Tungsten News & Tungsten Prices, 3G Version: http://3g.chinatungsten.com
Molybdenum News & Molybdenum Price: http://news.molybdenum.com.cn


High temperature sintering infiltration prepares tungsten copper rod is an important method for the preparation of tungsten copper rod.

Principle of preparation ofhigh temperature sintering infiltration prepares tungsten copper rod is that press-formed sintered at high temperature hydrogen tungsten powder, copper is higher than the melting point of the molten copper infiltrated tungsten skeleton rely on capillary action. Advantages of high temperature sintering infiltration prepares tungsten copper rod reflect in that due to the high temperature sintering, tungsten powders restore full, low melting point impurities as well as low-cost tungsten oxide reduction are not easily removed by volatilization and can be divided into heat, through this the method of obtaining the skeleton has a high strength, to avoid the emergence of the phenomenon of arc burning operations, improve the quality of tungsten copper rod.

Disadvantage of high temperature sintering infiltration prepares tungsten copper rod are that the whole production of tungsten copper rod complex process, long production cycle, high cost of production limits the application of tungsten copper rod.

Tungsten Manufacturer & Supplier: Chinatungsten Online - http://www.chinatungsten.com
Tel.: 86 592 5129696; Fax: 86 592 5129797
Email: sales@chinatungsten.com
Tungsten & Molybdenum Information Bank: http://i.chinatungsten.com
Tungsten News & Tungsten Prices, 3G Version: http://3g.chinatungsten.com
Molybdenum News & Molybdenum Price: http://news.molybdenum.com.cn

Tungsten Tube Specification:

Purity: ≥99.95%;
Thickness: 8-30mm ;
Diameter: 30-500mm;
Length: 10-2000mm;
Appearance: silver grey metal luster;
Supply state: sintering or processing;
Quality standard: GB/T 4187-1984 (tungsten rod) ASTM F288-90;
Size range: Diameter Φ (1.0 ~ 50) mm × thickness (0.1 ~ 5) mm × (50 ~ 1000) mm
(A special specification of tungsten tube is available according to customer demand and design.)
Density ---made by sintering: 18.2g/cm3;
              ---made by complete forging with proper size: 19.2g/cm3 (if the size is too big, the density only can reach to 18.8g/cm3 around);

Application: Tungsten tube is mainly applied in high temperature furnace components, crucible, missile rockets nozzle high temperature furnace, etc.

Tungsten tube and tungsten pipe are manufactured on high accuracy equipment from certified blanks. Vacuum heat treatment facilities are used. The production quality is controlled at all stages. Tungsten tube is often produced in size from 0.15 to 35 mm diameter, wall thickness from 0.05 mm to 10 mm. Tungsten tube is widely used in the thermocouple protection tube, sapphire crystal furnace and high temperature furnace, etc.


Tungsten Metals Manufacturer & Supplier: Chinatungsten Online - http://www.tungsten.com.cn
 Tel.: 86 592 5129696; Fax: 86 592 5129797
 Email: sales@chinatungsten.com
 Tungsten & Molybdenum Information Bank: http://i.chinatungsten.com
 Tungsten News & Tungsten Prices, 3G Version: http://3g.chinatungsten.com
 Molybdenum News & Molybdenum Price: http://news.molybdenum.com.cn

Violet tungsten oxide usually has not needle-shaped particles appear. Its status, there are two kind of non needle-shape state: one is the small particles, another is the large particles. Producing violet tungsten oxide under normal production process which through 400 mesh screen, taking oversize product +400 meshes and sieve-through material -400 meshes. After studies found that in + 400 meshes of violet tungsten oxide there haven’t non-needle particles. On the other hand in -400 meshes the particles are almost non-needle particle. Using microscopic observed found large needle particles is yellow and the surface smooth, so it may be is tungsten trioxide. But using SEM examination found no non-needle small particles. So that large and small non-needle particles are difficult to simultaneously exist in the same compound.

Uniform APT production violet tungsten oxide is purple or fuchsia. There are individual small particles of non-needle particles. And uneven APT producing violet tungsten oxide is black-blue with more non-pin small particles. After using SEM detected, small particles non-needle appear in uneven thickness particles, compared to needle-shaped particles only low aerobic elements, without affecting the other impurity elements. So if want producing high quality violet tungsten oxide in addition to control of process conditions but also need more even APT and tungsten acid.

Tungsten Manufacturer & Supplier: Chinatungsten Online - http://www.chinatungsten.com
Tel.: 86 592 5129696; Fax: 86 592 5129797
Email: sales@chinatungsten.com
Tungsten & Molybdenum Information Bank: http://i.chinatungsten.com
Tungsten News & Tungsten Prices, 3G Version: http://3g.chinatungsten.com
Molybdenum News & Molybdenum Price: http://news.molybdenum.com.cn


Tungsten carbide is the most common material for rock drilling due to its superior combination of toughness and hardness. To elucidate the relationship between the known wear behavior against different rock types and the corresponding sliding friction performance, a tungsten carbide rock drill button friction test series has been performed. A tungsten carbide rock drill button with 94-wt.% WC and 6-wt.% Co was sliding against polished granite, magnetite, hematite, quartzite, mica schist, leptite and sandstone in a pin-on-disc tribometer. The test was performed in 25 °C and 350 °C air and also in 25 °C water. The load was chosen to 20 N (which is considerably lower than required for crushing the rock) and the sliding velocity was 0.26 m/s.

At 25 °C, the tungsten carbide exhibited the highest stable dry friction against mica schist, and the lowest against leptite. At 350 °C, leptite gave the highest friction and hematite the lowest. In water, granite showed the highest friction and quartzite the lowest.

 Tungsten Metals Manufacturer & Supplier: Chinatungsten Online - http://www.tungsten.com.cn
 Tel.: 86 592 5129696; Fax: 86 592 5129797
 Email:  sales@chinatungsten.com
 Tungsten & Molybdenum Information Bank: http://i.chinatungsten.com
 Tungsten News & Tungsten Prices, 3G Version: http://3g.chinatungsten.com
 Molybdenum News & Molybdenum Price: http://news.molybdenum.com.cn

During the pressing process, female mould is under high pressure and friction, thus the material required for the pressing mould should be high hardness and wear resistance. So the YG8 tungsten carbide is applied which the hardness is above 89HRA. In order to cut the producing cost, the female mould coat is made of steel.

Tungsten carbide button automatic pressing mould is made through the following step:
1.Select the proper size of YG8 tungsten carbide and drill it with a round hole then put the core rod in it and polishing the outer surface.

2.Turn it to the required size and then quenching and tempering

3.Grind the inner hole of steel jacket and heat it to a certain temperature, then coat it on the tungsten carbide mould very fast.

4.Exact-grinding the surface of steel coat. Take off the core rod. Grind mould chamber to the designed size.
