Saw bit tooth angle is an important determinant of tungsten carbide saw blade cutting performance, which (rake angle, back angle, wedge angle) recognized as the serrated position when cutting, and also an important determinant of carbide saw blade cutting performance. It owns a great effort in improving product quality, shorten cycle times, reducing processing costs in accordance by adopting a reasonable set of  tungsten carbide serrated cutting angle.


Rake Angle

Serrated cutting edge angle, angle range varied from 10 to 15 degrees. As an impact of sawing wood consumed power. The sharper the serrated cutting rake angle, the better it performance will be( more portable of cutting, easier of  pushing power). Usually relatively soft material is suitable to be processed if the rake angle is large, otherwise a smaller rake angle will be an option.


 Tungsten Carbide Manufacturer & Supplier: Chinatungsten Online - http://www.tungsten-carbide.com.cn
 Tel.: 86 592 5129696; Fax: 86 592 5129797
 Email:   sales@chinatungsten.com
 Tungsten & Molybdenum Information Bank: http://i.chinatungsten.com
 Tungsten News & Tungsten Prices, 3G Version: http://3g.chinatungsten.com
 Molybdenum News & Molybdenum Price: http://news.molybdenum.com.cn

Tungsten carbide saws are designed with ways, such as horizontal, vertical or tilted slide-arrangement. This designed ways consist of a welded base made of ribbing solid steel plates, and the vibration dampening material is filled inside. Furthermore, the occurring forces and dampens vibrations are required to be absorbed by the base. Case-hardened ways are bolted on the base where the gearbox slides.



The slide is guided by taper gibs with a minimum play, or hydraulically operated gibs which can be preloaded to eliminate play, in order to obtain the necessary rigidity. Recently, preloaded linear ways have also been used. Experts still debate, if preloaded box ways with low friction plastic lining are better vibration dampening than preloaded, hardened linear ways with hardened balls or rollers.


 Tungsten Carbide Manufacturer & Supplier: Chinatungsten Online - http://www.tungsten-carbide.com.cn
 Tel.: 86 592 5129696; Fax: 86 592 5129797
 Email:   sales@chinatungsten.com
 Tungsten & Molybdenum Information Bank: http://i.chinatungsten.com
 Tungsten News & Tungsten Prices, 3G Version: http://3g.chinatungsten.com
 Molybdenum News & Molybdenum Price: http://news.molybdenum.com.cn

Linear particle accelerator is a type of particle accelerator that generate X-rays and high energy electrons for medicinal purposes in radiation therapy. Since its high density and atomic mass, tungsten alloy exhibits excellent absorption behaviour against electromagnetic radiation such as X-rays and gamma-radiation, a linear particle accelerator is most commonly made of tungsten alloy.

Tungsten alloy linear particle accelerator use mono energetic electron beams between 4 and 25 MeV, giving an X-ray output with a spectrum of energies up to and including the electron energy when the electrons are directed at a high-density target, which is tungsten alloy. The electrons or X-rays can be used to treat both benign and malignant disease.


  Tungsten Alloy Manufacturer & Supplier: Chinatungsten Online- http://www.tungsten-alloy.com
  Tel.: 86 592 5129696; Fax: 86 592 5129797
  Email:  sales@chinatungsten.com
  Tungsten & Molybdenum Information Bank: http://i.chinatungsten.com
  Tungsten News & Tungsten Prices, 3G Version: http://3g.chinatungsten.com
  Molybdenum News & Molybdenum Price: http://news.molybdenum.com.cn

Tungsten alloy linear particle accelerator is a type of particle accelerator that greatly increases thekinetic energy of charged subatomic particles or ions by subjecting the charged particles to a series of oscillating electric potentials along a linear beamline. Tungsten alloy linear particle accelerators have many applications: they generate X-rays and high energy electrons for medicinal purposes in radiation therapy, serve as particle injectors for higher-energy accelerators, and are used directly to achieve the highest kinetic energy for light particles (electrons and positrons) for particle physics.

The photograph below shows tungsten alloy materials to manufacture linear particle accelerator.

  Tungsten Alloy Manufacturer & Supplier: Chinatungsten Online- http://www.tungsten-alloy.com
  Tel.: 86 592 5129696; Fax: 86 592 5129797
  Email:  sales@chinatungsten.com
  Tungsten & Molybdenum Information Bank: http://i.chinatungsten.com
  Tungsten News & Tungsten Prices, 3G Version: http://3g.chinatungsten.com
  Molybdenum News & Molybdenum Price: http://news.molybdenum.com.cn


A tungsten carbide glass cutter is a tool used to make a shallow score in one surface of a piece of glass that is to be broken in two pieces. The scoring makes a split in the surface of the glass which encourages the glass to break along the score. Regular, annealed glass can be broken apart this way but not tempered glass as the latter tends to shatter rather than breaking cleanly into two pieces.



The small cutting wheel made of hardened steel or tungsten carbide 4–6 mm in diameter with a V-shaped profile called a "hone angle" is used. The greater the hone angle of the wheel, the sharper the angle of the V and the thicker the piece of glass it is designed to cut. The hone angle on most hand-held glass cutters is 120°, though wheels are made as sharp as 154° for cutting glass as thick as 0.5 inches.


 Tungsten Carbide Manufacturer & Supplier: Chinatungsten Online - http://www.tungsten-carbide.com.cn
 Tel.: 86 592 5129696; Fax: 86 592 5129797
 Email:   sales@chinatungsten.com
 Tungsten & Molybdenum Information Bank: http://i.chinatungsten.com
 Tungsten News & Tungsten Prices, 3G Version: http://3g.chinatungsten.com
 Molybdenum News & Molybdenum Price: http://news.molybdenum.com.cn

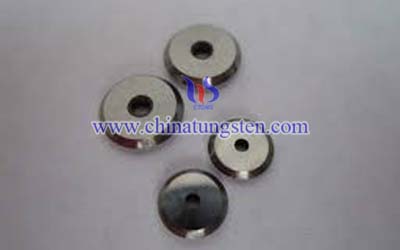

Tungsten carbide glass cutters are manufactured with wheels of varying diameters.



One of the most popular has a diameter of 5.5 mm (7⁄32 in). The ratio between the arc of the wheel and the pressure applied with the tool has an important bearing on the degree of penetration.

Average hand pressure with this size wheel often gives good results. For a duller wheel on soft glass a larger wheel (e.g., 6 mm (1⁄4 in) will require no change in hand pressure. A smaller wheel (3 mm (1⁄8 in)) is appropriate for cutting patterns and curves since a smaller wheel can follow curved lines without dragging.


 Tungsten Carbide Manufacturer & Supplier: Chinatungsten Online - http://www.tungsten-carbide.com.cn
 Tel.: 86 592 5129696; Fax: 86 592 5129797
 Email:   sales@chinatungsten.com
 Tungsten & Molybdenum Information Bank: http://i.chinatungsten.com
 Tungsten News & Tungsten Prices, 3G Version: http://3g.chinatungsten.com
 Molybdenum News & Molybdenum Price: http://news.molybdenum.com.cn


Tungsten carbide file is a tool applied in shaping metal, wood and other materials. Some common files applications are listed as follows,

Hand files are parallel in width and tapered in thickness; they are used for general work.



Mill files are the most common shape; they are rectangular in cross section and taper slightly in both width and thickness from tang to end. They are all single-cut.

Joint round edge files are parallel in width and thickness, with rounded edges. The flats are safe (no teeth) and cut on the rounded edges only. Used for making joints and hinges.

Needle files are small files that are used in applications where the surface finish takes priority over metal removal rates but they are most suited for smaller work pieces. They are often sold in sets, including different shapes.


 Tungsten Carbide Manufacturer & Supplier: Chinatungsten Online - http://www.tungsten-carbide.com.cn
 Tel.: 86 592 5129696; Fax: 86 592 5129797
 Email:   sales@chinatungsten.com
 Tungsten & Molybdenum Information Bank: http://i.chinatungsten.com
 Tungsten News & Tungsten Prices, 3G Version: http://3g.chinatungsten.com
 Molybdenum News & Molybdenum Price: http://news.molybdenum.com.cn

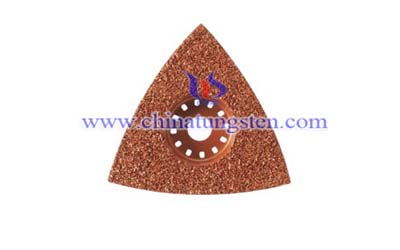

Tungsten carbide rasp is a tool used for shaping wood or other material. It consists of a point or the tip, a long steel bar or the belly, the heel or bottom and the tang with abrasive surface of carbide grit. The tang is joined to a handle, usually made of plastic or wood. The carbide rasp use on the set, paint and other material removal with optimal speed and life in tough application.

There are several types and shapes of rasps. There is a half round, round and flat. The several types of rasps are bastard, cabinet and wood (finest to coarsest). All these varieties can be used to make different shapes.

 Tungsten Carbide Manufacturer & Supplier: Chinatungsten Online - http://www.tungsten-carbide.com.cn
 Tel.: 86 592 5129696; Fax: 86 592 5129797
 Email:   sales@chinatungsten.com
 Tungsten & Molybdenum Information Bank: http://i.chinatungsten.com
 Tungsten News & Tungsten Prices, 3G Version: http://3g.chinatungsten.com
 Molybdenum News & Molybdenum Price: http://news.molybdenum.com.cn

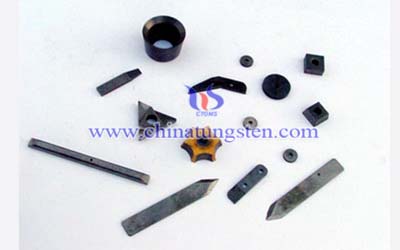

A tungsten carbide tool refers to any metal tool with a carbide-based tip or work surface. This includes hand-held tools such as screwdrivers and handsaws, as well as large-scale equipment like wood routers or industrial cutting machines. Many drills use carbide bits, and most woodworking tools and saws feature carbide cutting blades. The carbide used to make these tools is a blend of carbon and another element, typically tungsten or silicon.



The standard carbide tool is not made from pure carbide. Instead, the tool is crafted from steel or another inexpensive metal. A carbide tip or blade is then fastened to the steel base through a brazing process. For example, a typical carbide saw blade is constructed primarily from steel. The cutting teeth around the edge of the blade, which are made from carbide, are then joined to the circular base to form a complete blade.


 Tungsten Carbide Manufacturer & Supplier: Chinatungsten Online - http://www.tungsten-carbide.com.cn
 Tel.: 86 592 5129696; Fax: 86 592 5129797
 Email:   sales@chinatungsten.com
 Tungsten & Molybdenum Information Bank: http://i.chinatungsten.com
 Tungsten News & Tungsten Prices, 3G Version: http://3g.chinatungsten.com
 Molybdenum News & Molybdenum Price: http://news.molybdenum.com.cn

The effective cutting of glass also requires a small amount of oil (kerosene is often used) and some glass cutters contain a reservoir of this oil which both lubricates the wheel and prevents it from becoming too hot: as the wheel scores, friction between it and the glass surface briefly generates intense heat, and oil dissipates this efficiently. When properly lubricated a steel wheel can give a long period of satisfactory service.



Tungsten carbide wheels have been proven to have a significantly longer life than steel wheels and offer greater and more reproducible penetration in scoring as well as easier opening of the scored glass,wherase the main drawback of normal glass cutter wheel is that wheels with sharper hone angles will become dull more quickly than their more obtuse counterparts.


 Tungsten Carbide Manufacturer & Supplier: Chinatungsten Online - http://www.tungsten-carbide.com.cn
 Tel.: 86 592 5129696; Fax: 86 592 5129797
 Email:   sales@chinatungsten.com
 Tungsten & Molybdenum Information Bank: http://i.chinatungsten.com
 Tungsten News & Tungsten Prices, 3G Version: http://3g.chinatungsten.com
 Molybdenum News & Molybdenum Price: http://news.molybdenum.com.cn
