Reactant gas: WF₆

Reducing gas: H₂

Deposition matrix: copper tube;

Atmospheric conditions: at atmospheric pressure;

CVD (Chemical Vapor Deposition) tungsten tube productive process:

First, at a constant temperature, heating WF₆ and wait for gasification, then pass WF₆ into the mixing gas chamber until it mixes with hydrogen fully, and then pass them into the reaction chamber.

Heating the copper tube until the temperature is up to the desired deposition temperature.

WF₆ and H₂ set off a chemical reaction on the surface of copper tube; WF₆ is reduced to W atom. And the W atom will gather nucleation and grow at the copper surface, eventually forming tungsten deposits---tungsten tube.

Chemical reaction formula of WF₆ and H₂ reaction is as follows:

WF₆+ H₂→ W + 6HF (125Kj / mol)

Using gas absorption device to absorb the residual gas of WF₆ and H₂, and HF discharged from reaction chamber.


Tungsten Metals Manufacturer & Supplier: Chinatungsten Online - http://www.tungsten.com.cn
 Tel.: 86 592 5129696; Fax: 86 592 5129797
 Email: sales@chinatungsten.com
 Tungsten & Molybdenum Information Bank: http://i.chinatungsten.com
 Tungsten News & Tungsten Prices, 3G Version: http://3g.chinatungsten.com
 Molybdenum News & Molybdenum Price: http://news.molybdenum.com.cn

Because the tungsten tube prepared by CVD (chemical vapor deposition) owns many advantages, so it has attracted many metallurgical industry and other stakeholders’ attentions.

Advantages of CVD:

Compared to the powder metallurgy process, CVD process is more simplified and stable, and the tungsten tube can be achieved by one-time forming, thus the sintering, pressing, forging and other processes can be avoided.

With fast deposition speed and high efficiency. Because the refractory metal owns large atomic radius, high melting point and other characteristics, so it is not improper to adopt PVD (Physical Vapor Deposition) and other preparation technology ---with low deposition efficiency.

Good rolling and sputtering plating. Thus the deposited product can be obtained with complex shape, compact microstructure or large size. It is also easy to implement the film layer deposition on the pipe inwall or container inwall. It can even achieve the multilayer film deposition and multi-component alloy layer deposition.

The deposited film is of high purity, good density and multi-component alloy layer ingredient can be precisely controlled.


Tungsten Metals Manufacturer & Supplier: Chinatungsten Online - http://www.tungsten.com.cn
 Tel.: 86 592 5129696; Fax: 86 592 5129797
 Email: sales@chinatungsten.com
 Tungsten & Molybdenum Information Bank: http://i.chinatungsten.com
 Tungsten News & Tungsten Prices, 3G Version: http://3g.chinatungsten.com
 Molybdenum News & Molybdenum Price: http://news.molybdenum.com.cn

Great advances have been made in the production of X-rays, chiefly by the employment of very heavy currents. The exposures necessary for producing radiographs of the thorax have been reduced from minutes to fractions of a second.

To make this possible, much attention has been devoted to the target or anti-kathode, which is the critical part of the tube, for here it is that the focus of the kathode stream strikes, and the energy of the bombarding electrons is transformed into X-radiation.

A special target of tungsten has been introduced, that is being largely used by manufacturers of X-ray tubes. The tungsten is in the form of a thick button brazed into a solid block of copper, in some cases weighing as much as half a pound; this forms a lasting and efficient target, even when heavy currents are used for considerable periods of time, as is often necessary when using X-rays for therapeutic purposes.

The adaptation of tungsten for this purpose is an example of the great value that lies hidden in the rare and little-known elements, and doubtless other instances of a similar nature will develop as the metals become available.

  Tungsten Alloy Manufacturer & Supplier: Chinatungsten Online- http://www.tungsten-alloy.com
  Tel.: 86 592 5129696; Fax: 86 592 5129797
  Email:  sales@chinatungsten.com
  Tungsten & Molybdenum Information Bank: http://i.chinatungsten.com
  Tungsten News & Tungsten Prices, 3G Version: http://3g.chinatungsten.com
  Molybdenum News & Molybdenum Price: http://news.molybdenum.com.cn

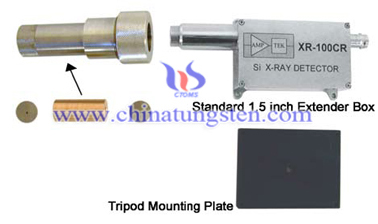

In order to accommodate applications where the X-ray flux is too high for both the detector and the electronics that process the X-ray spectrum, a “Collimator Kit” has been developed to collimate the primary X-ray beam. This system is comprised of standard 1.5 inch extender box which slides inside collimator housing.

The collimator housing can accommodate up to two tungsten collimator disks (tungsten alloy shielding, 90% W, 6% Ni, 4% Cu) that are placed inside a bayonet holder in front of the detector. By selecting the appropriate tungsten collimator disks, the user can reduce the incoming X-ray flux and allow the detector and electronics to process the X-ray spectrum. Seven different tungsten collimator disks are provided with different size holes in order to allow for a wide range of applications.

  Tungsten Alloy Manufacturer & Supplier: Chinatungsten Online- http://www.tungsten-alloy.com
  Tel.: 86 592 5129696; Fax: 86 592 5129797
  Email:  sales@chinatungsten.com
  Tungsten & Molybdenum Information Bank: http://i.chinatungsten.com
  Tungsten News & Tungsten Prices, 3G Version: http://3g.chinatungsten.com
  Molybdenum News & Molybdenum Price: http://news.molybdenum.com.cn


After tungsten carbide button sintering process, there can be some pores inside button which will affect its property. Thus reducing pores in the button is an effective way to promote its property. In 1960s, Kennametel Corp in America firstly applied hot isostatic pressing method into producing tungsten carbide button. This method reduces a lot of pores in the tungsten carbide button; enhance its density and tenacity, prolong its service life.

However, hot isostatic pressing method requires expensive equipment; it is of low efficiency which increases producing cost. In order to solve these problems, some researchers combine vacuum sintering with hot isostatic pressing which is called low pressure hot isostatic sintering method. It can fully improve property of tungsten carbide button which decreases pores in the button and refined tungsten carbide grain size. It eliminates the coarse tungsten carbide grain on the surface of button and prevents gradients from alternating on the surface of tungsten carbide button. Thus increase its mechanical property.


 Tungsten Metals Manufacturer & Supplier: Chinatungsten Online - http://www.tungsten.com.cn
 Tel.: 86 592 5129696; Fax: 86 592 5129797
 Email:  sales@chinatungsten.com
 Tungsten & Molybdenum Information Bank: http://i.chinatungsten.com
 Tungsten News & Tungsten Prices, 3G Version: http://3g.chinatungsten.com
 Molybdenum News & Molybdenum Price: http://news.molybdenum.com.cn

Tungsten carbide buttons are widely applied in geological prospecting, coal mining and oil well boring. Because of its wear resistance and hardness, tungsten carbide button is ideally suited for wear parts, other machine parts and dies which are subject to severe service conditions, such as high temperatures, corrosion and abrasion.

Some manufactures in China and from abroad add a trace of TaC into tungsten carbide button in order to improve tungsten carbide button binder structure, promote its wear resistance, resistance to heat shocks and thermal plastic deformation. But TaC can reduce tungsten carbide button hardness and toughness, increase the producing cost.

Some other researchers add Ta and Mo into tungsten carbide button and it turns out the button is of high tenacity and high hardness. This is because of a complex layer formed in the tungsten carbide grain with Ta and Mo. Thus tungsten carbide button performs a great impact toughness and high wear resistance.


 Tungsten Metals Manufacturer & Supplier: Chinatungsten Online - http://www.tungsten.com.cn
 Tel.: 86 592 5129696; Fax: 86 592 5129797
 Email:  sales@chinatungsten.com
 Tungsten & Molybdenum Information Bank: http://i.chinatungsten.com
 Tungsten News & Tungsten Prices, 3G Version: http://3g.chinatungsten.com
 Molybdenum News & Molybdenum Price: http://news.molybdenum.com.cn

Development of tungsten carbide button is mainly concentrated on microelement of tungsten carbide materials, gradient structure optimization, nano crystallization of tungsten carbide button, improvement of producing method and also designation of tungsten carbide button shape. Tungsten carbide button future marketing competition will be focused on technology content instead of producing quantity.

The following proposals need to be considered in the future development of tungsten carbide button:

1.Nano techniques shows great characters in producing tungsten carbide button. Researchers should speed up development progress, fully apply nano materials in producing tungsten carbide button.

2.Although research on functionally gradient tungsten carbide button has made certain achievement, the property of tungsten carbide button does not reach the anticipated result. During the producing process the quality is hard to control. So there is still a lot of study to be done in this field.

3.Apart from low pressure hot isostatic sintering producing method, other methods like micro sintering and laser sintering can also be applied.


 Tungsten Metals Manufacturer & Supplier: Chinatungsten Online - http://www.tungsten.com.cn
 Tel.: 86 592 5129696; Fax: 86 592 5129797
 Email:  sales@chinatungsten.com
 Tungsten & Molybdenum Information Bank: http://i.chinatungsten.com
 Tungsten News & Tungsten Prices, 3G Version: http://3g.chinatungsten.com
 Molybdenum News & Molybdenum Price: http://news.molybdenum.com.cn

Different position of deposition matrix has a significant impact on the morphology of tungsten tube.

In the end position near the gas outlet, the temperature in temperature region and in deposition temperature is relatively close, but due to the influence of the early deposition reaction, the concentration of WF₆ and H₂ is lowered, and the concentration of HF is increasing, therefore, the speed of tungsten atoms reduction slow down; the crystal grains in temperature region are much finer than in deposition organizations; the thickness of tungsten tube near the gas outlet end is significantly thinner.

Near the gas inlet end position, due to the impact of the inlet gas, the deposition temperature of this place is relatively low, so the columnar crystal of deposited layer microstructure is much smaller in this position; the deposition growth rate is relatively slow.


Tungsten Metals Manufacturer & Supplier: Chinatungsten Online - http://www.tungsten.com.cn
 Tel.: 86 592 5129696; Fax: 86 592 5129797
 Email: sales@chinatungsten.com
 Tungsten & Molybdenum Information Bank: http://i.chinatungsten.com
 Tungsten News & Tungsten Prices, 3G Version: http://3g.chinatungsten.com
 Molybdenum News & Molybdenum Price: http://news.molybdenum.com.cn

Nowadays, tungsten oxide (WO_X) electrochromic is the most widely studied. Electrochromic WO_X film is reversed from a bleached state (colorless) to a colored state (dark-blue) to produce tungsten bronze (MαWO_X) by intercalating both ions and electrons according to the intercalation reaction:  WO_X+αM++αe-←→MαWO_X. However, electrochromic WO_X films have poor chemical stability in an acidic electrolyte solution (i.e., a protonic H⁺ ion ^– containing electrolyte) during electrolyte cycling due to the film’s dissolution in the H2SO4 electrolytes solution, therefore, the non-protonic lithium-containing electrolytes are generally used to assure the reversible Li+ intercalation into and deinteralation out from tungsten oxide films. To enhance the lithium eletrochromic properties of WO_X, several dopants such as Au crystals, TiO_X, MoO_x, FeO_X and carbon nanotubes have been added into WO_X films.

After adding dopants it can enhance tungsten oxide films’ lithium electrochromic properties which are under an atmosphere pressing plasma jet.


Tungsten Manufacturer & Supplier: Chinatungsten Online - http://www.chinatungsten.com
Tel.: 86 592 5129696; Fax: 86 592 5129797
Email: sales@chinatungsten.com
Tungsten & Molybdenum Information Bank: http://i.chinatungsten.com
Tungsten News & Tungsten Prices, 3G Version: http://3g.chinatungsten.com
Molybdenum News & Molybdenum Price: http://news.molybdenum.com.cn


Fine tungsten powder used more widely, it also makes the study of ultrafine tungsten powder is increasing. Currently the producing method of ultrafine tungsten powder has three main research directions: First, to improve the blue tungsten process. Second, the introduction of new reduction methods, such as hydrogen halide reduction and the third is the use of laser and other new fluidized technology. The study found that using violet tungsten oxide to producing fine particles of tungsten powder is good than using blue tungsten oxide so the producing fine particles of tungsten powder the violet tungsten as material is more popular than blue tungsten oxide. But violet tungsten powder particle sizes also will influent tungsten powder size and properties. Fine violet tungsten powder can produce good properties fine particles so to produce fine particles violet tungsten oxide has a certain significance and role for fine tungsten powder. Producing process as follows:
1. The amount of APT loaded boa then push into hot zone of reduction furnace, while feeding a certain proportion of mixed gas which is hydrogen and water vapor, heated to a predetermined temperature to cool for a while after being room temperature draw a charge
2. In the heating, keeping, cooling process, the gas flow rate remains constant.
3. Using WLP202 type fsss analyzer to analysis raw material and product and the phase of the product analysis by the x-ray diffraction.
