Tungsten Carbide Ball Bearing VI

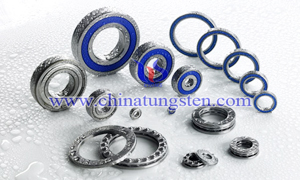

Angular Contact Tungsten Carbide Ball Bearings: Angular contact tungsten carbide ball bearings use axially asymmetric races. The raceways in the inner and outer rings have a raised shoulder which is displaced with respect to each other in the direction of the bearing axis. (See angular contact tungsten carbide ball bearing photo below).

In simpler terms, this means that these bearings are designed to accommodate combined loads (loads in both the radial and axial directions). The angle of contact is the same on both the inner and outer race. The larger the contact angle, the higher the axial load supported, but the lower the radial load.

In New York Ruling (NY) R04120, dated June 26, 2006, angular contact ball bearings are   defined as “having internal contact angles that generally range between 15-40 degrees and are designed to support both radial and axial loads where the axial load would normally exceed the design limits of a typical radial ball bearing.”

These bearings are found in automobiles, bicycles, turbines, jet engines, dentistry equipment, etc. The ten digit classification is dependent on whether the bearing is used in a wheel hub unit and whether the wheel hub unit is flanged.
