Structure of Tungsten Collimator Kit

In order to accommodate applications where the X-ray flux is too high for both the detector and the electronics that process the X-ray spectrum, a “Collimator Kit” has been developed to collimate the primary X-ray beam. This system is comprised of standard 1.5 inch extender box which slides inside collimator housing.

The collimator housing can accommodate up to two tungsten collimator disks that are placed inside a bayonet holder in front of the detector. All tungsten disks are made of alloy HD17 (90% W, 6% Ni, 4% Cu). All Tungsten disks and spacers have a diameter of 0.625 inches. This Tungsten (W) Spacer /Collimator is 36 mm thick with a 300 µm hole. It is designed to stop and collimate x-rays greater than 100 keV produced from high energy tubes.

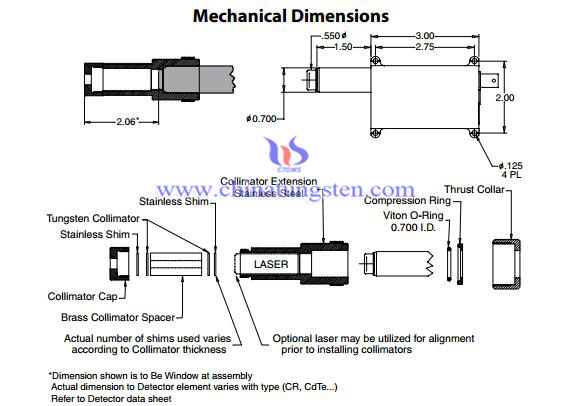

The picture shows the structure of tungsten collimator kit:
