Application of Barium Tungsten Electrode in Photomultiplier Tube

Barium tungsten electrode plays an important role as cathode material in photomultiplier tube. Photomultiplier tube is a highly sensitive photodetector, which is widely used in particle physics, nuclear physics, astrophysics and other fields to detect weak light signals. Its working principle is to use the photoelectric effect to convert light signal into electronic signal, and then amplify the electronic signal through the electron multiplication mechanism, and finally output the electrical signal.

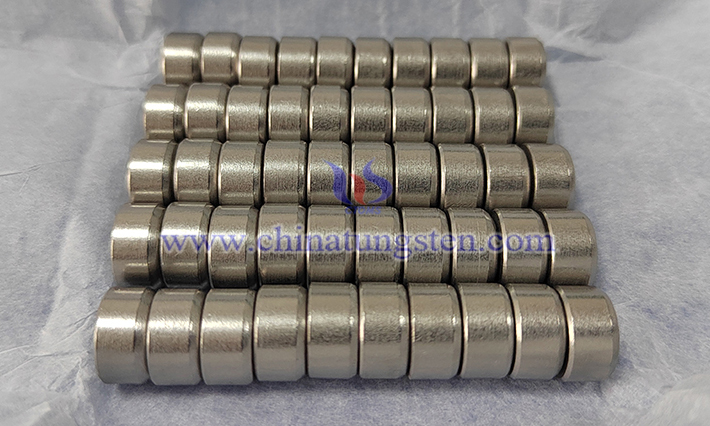

barium tungsten electrodes image

1. The Role of Barium Tungsten Electrode

The cathode is a key component of the photomultiplier tube, responsible for converting incident photons into photoelectrons. Barium tungsten electrode is composed of barium (Barium) and tungsten (Tungsten), which is a commonly used cathode material. Barium has a lower work function, which means it is easier to emit electrons when exposed to light; while tungsten has a high melting point, high hardness and good thermal stability.

2. Advantages of Barium Tungsten Electrodes

Barium tungsten electrodes are usually prepared by thin film deposition techniques such as thermal evaporation or sputtering. Their application in photomultiplier tubes has the following advantages:

2.1 High quantum efficiency: The low work function of barium enables the barium tungsten electrode to emit photoelectrons in a wider wavelength range, thereby improving the quantum efficiency of the photomultiplier tube, that is, the efficiency of converting photons into photoelectrons.

2.2 Fast response: The electron emission speed of the barium tungsten electrode is fast, which can achieve fast signal response and is suitable for application scenarios requiring high-speed signal detection.

2.3 Stability: The addition of tungsten improves the mechanical strength and thermal stability of the electrode, so that the barium tungsten electrode can still maintain good performance under high temperature and strong electric field environment.

2.4 Corrosion resistance: Tungsten has good corrosion resistance and can resist the erosion of gases and chemicals inside the photomultiplier tube, extending the service life of the electrode.

barium tungsten electrodes image

3. Disadvantages of Barium Tungsten Electrodes

Although barium tungsten electrodes have significant advantages, they also have some limitations:

3.1 Complex preparation process: The preparation of barium tungsten electrodes requires precise control of the ratio of barium and tungsten, deposition process and heat treatment conditions, which has high process requirements and increases the difficulty of manufacturing.

3.2 High cost: Both barium and tungsten are rare metals, the cost of raw materials is high, and the preparation process is complex, resulting in high manufacturing costs of barium tungsten electrodes.

3.3 Environmental sensitivity: Barium tungsten electrodes are sensitive to gases such as oxygen and water vapor in the environment, and are easily oxidized or contaminated, affecting their performance and service life.
