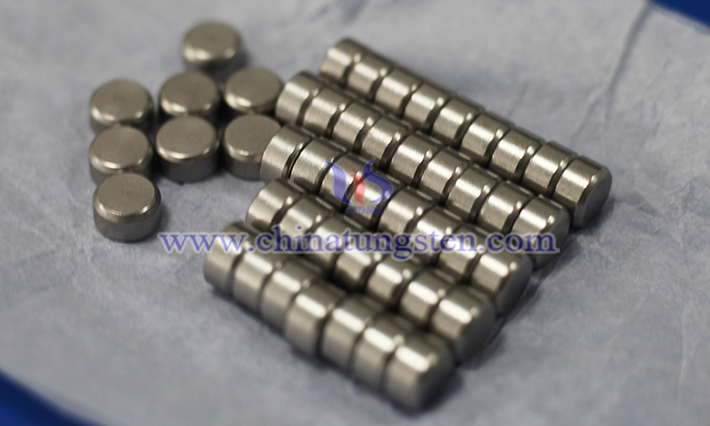

Role of Barium Tungsten Electrodes in High-Power Microwave Devices

Barium tungsten electrode has become an indispensable key material in high-power microwave devices through its low work function, diffuse cathode structure and environmental protection characteristics. It not only supports the high-power output and stability of the device, but also promotes the wide application of high-power microwave technology in military, industrial, scientific research and other fields.

The role of barium tungsten electrode in high-power microwave devices is mainly reflected in the following aspects:

1. Efficient electron emission: the basis for supporting high-power output

Barium tungsten electrode significantly reduces the work function of the electrode by doping with barium element, so that electrons can leave the surface at a lower temperature, and the emission efficiency is greatly improved, which meets the peak power and frequency requirements of high-power microwave devices.

2. Diffused cathode structure: ensure continuous and stable emission

Barium tungsten electrodes mostly adopt diffuse cathode design, the core of which is the synergistic effect of porous tungsten matrix and barium salt active material. The porous tungsten matrix serves as a "reserve room" for active materials. Its internal interconnected pores allow barium atoms to diffuse to the electrode surface at high temperatures, forming a W-Ba-O electron emission system. During device operation, barium continues to migrate to the surface through the pores, compensating for losses caused by evaporation or sputtering, and ensuring long-term stable emission.

3. Improve device performance and reliability

Barium tungsten electrodes support high current density and rapid electron emission, enabling high-power microwave devices (such as magnetrons and gyrotrons) to output microwaves with peak powers of tens of GW, meeting the needs of directed energy weapons, radars and other scenarios. The chemical stability of barium enables the electrode to maintain its performance in complex environments, while the structural strength of the porous tungsten matrix extends the life of the device. In addition, compared with electrodes containing radioactive thorium, barium tungsten electrodes are non-toxic and environmentally friendly, reducing the cost of use and maintenance.

4. Application scenarios of barium tungsten electrodes in high-power microwave devices

High-power microwave sources: such as magnetrons, klystrons, etc., are used in radar, communications, and electronic countermeasure systems to achieve long-distance, high-precision signal transmission.

Directed energy weapons: As the core component of high-power microwave weapons, they achieve defense or attack through soft kill (interference with electronic equipment) or hard kill (physical destruction).

Industrial and scientific research fields: used for plasma heating, high-energy particle accelerators, material surface treatment, etc., relying on its stable high-power microwave output.
