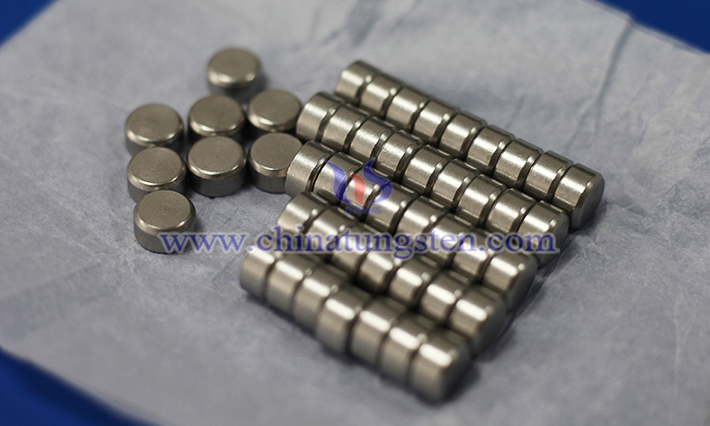

Factors Affecting the Machining Accuracy of Barium Tungsten Electrodes

The realization of the machining accuracy of barium tungsten electrodes requires comprehensive control of multiple influencing factors such as material properties, machining parameters, environmental conditions, operating skills and quality inspection.

1. Material Properties and Composition

1.1 Properties of Composite Materials: Barium tungsten electrode is a composite material composed of tungsten (W) and barium (Ba) compounds. The uniformity of its composition directly affects the machining accuracy. If the distribution of barium in the material is uneven or there are impurities, it may lead to hardness differences, causing uneven wear or surface defects of the cutting tool.

1.2 Microstructure: The microstructure of the material (such as grain size and porosity) has an important influence on the machining accuracy. Materials with fine grains usually achieve smoother cutting and higher precision, while materials with more pores or coarser grains may cause surface roughness or dimensional deviation.

2. Processing Parameters and Tools

2.1 Processing Method: Different processing methods (such as turning, milling, grinding or EDM) have a significant impact on accuracy. For example, grinding is often used for high-precision processing because it can achieve tight tolerances, while milling may introduce more variables.

2.2 Cutting Tools: The quality, material and geometry of the tools are crucial. For hard materials such as barium tungsten, tungsten carbide or diamond tools are usually used. Tool wear or improper selection can lead to poor surface quality or dimensional errors.

2.3 Cutting Parameters: Cutting speed, feed rate and cutting depth need to be optimized. Too high speed or feed rate may cause tool wear, heat accumulation or vibration, thereby reducing accuracy; too low parameters may affect efficiency and cause surface defects.

2.4 Machine Tool Stability and Accuracy: The rigidity and accuracy of the machine tool itself are the basis. Machine tools with high stability and low return error are particularly important for maintaining tight tolerances, especially when processing hard materials.

3. Environmental Conditions

3.1 Temperature: Temperature changes can cause expansion and contraction of the workpiece and machine tool, resulting in dimensional inaccuracies. Keeping the temperature of the machining environment stable is critical to accuracy.

3.2 Humidity: High humidity can affect the properties of the material, especially if the barium tungsten electrode is sensitive to moisture. Humidity can also affect the effectiveness of cutting fluids or lubricants.

3.3 Vibration: Vibration from external equipment or the machining process can affect the size and surface quality of the electrode. Vibration reduction measures are often necessary to ensure accuracy.

4. Operator Skills and Experience

4.1 Human Error: The skill level of the operator directly affects the machining accuracy. Experienced operators are better able to select parameters, handle tools, and make timely adjustments to deal with problems.

4.2 Workpiece Installation and Calibration: Proper installation and calibration of the workpiece and machine tool are critical. Even small deviations can lead to significant errors in the final product.

5. Quality Control and Inspection Technology

5.1 Measurement Accuracy: The accuracy of the inspection tool (such as micrometer, coordinate measuring machine) directly affects the evaluation of machining quality. Inaccurate measuring tools may misjudge machining accuracy.

5.2 Inspection Frequency: Regular and rigorous inspection during and after machining helps to detect deviations early and make corrections. Insufficient inspection may lead to errors going undetected.
