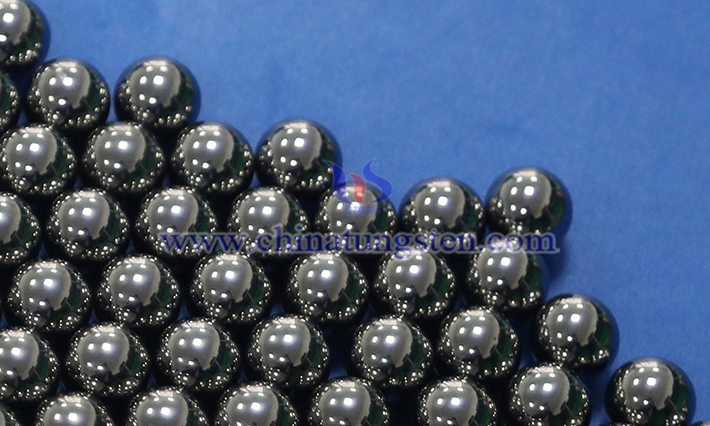

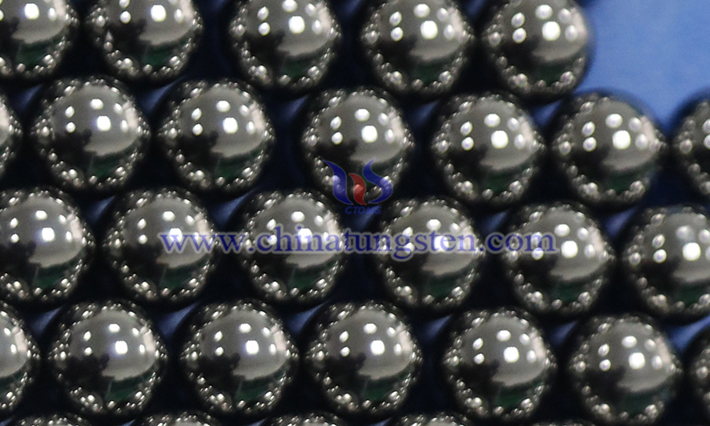

Microstructural Characteristics of Cemented Carbide Balls

Cemented carbide balls are typically manufactured through a powder metallurgy process using a refractory metal, tungsten carbide (WC), as the hard phase and an iron-group metal (such as cobalt, Co, nickel, etc.) as the binder phase. They are high-performance materials commonly used in bearings, valves, oil drilling balls, and mining tools. Their microstructural characteristics have a decisive influence on mechanical properties, wear resistance, and corrosion resistance. Specific characteristics are as follows:

1. Two-Phase Composite Structure

The microstructure of cemented carbide balls consists of a hard phase and a binder phase, forming a typical two-phase composite structure:

Hard phase: Primarily composed of tungsten carbide (WC), they appear as polygonal or nearly spherical particles. WC, with its high hardness, high elastic modulus, and excellent wear resistance, is the primary load-bearing phase in cemented carbide balls.

Binder Phase: Primarily composed of cobalt (Co), typically accounting for 5%-30%, it forms a continuous or semi-continuous matrix network that encapsulates the hard phase particles. Cobalt, while relatively low in hardness, possesses excellent toughness and ductility, absorbing impact energy through plastic deformation and preventing crack propagation.

2. Distribution and Morphology of Hard Phase Particles

Uniformity: Ideally, WC particles should be evenly distributed within the cobalt matrix, avoiding localized aggregation or depletion. This uniform distribution ensures uniform stress transfer and reduces failures caused by stress concentration.

Particle Shape: WC particles are typically polygonal in shape, and their corners may be partially encapsulated by the cobalt matrix during sintering, resulting in a "rounded" structure that reduces stress concentration.

Grain Size: WC grain size significantly influences performance. Fine grains increase hardness and wear resistance but may reduce toughness; coarse grains improve toughness but reduce wear resistance. Grain size can be controlled by controlling the sintering temperature and time.

3. Binder Phase Continuity and Thickness

Continuity: The cobalt matrix should form a continuous network, completely encapsulating the WC particles. This ensures that crack propagation dissipates energy through plastic deformation of the cobalt. If the cobalt phase is discontinuous, cracks may propagate directly through the WC particles, resulting in brittle fracture.

Thickness Control: The cobalt layer should be of moderate thickness. Too thin a layer may result in insufficient bonding and easy WC particle detachment; too thick a layer may reduce overall hardness.

4. Porosity and Defects

Porosity: Cemented carbide balls should be as dense as possible, typically with a porosity of less than 0.5%. Porosity can serve as a crack initiation source, significantly reducing strength and wear resistance.

Defect Types: Common defects include unsintered pores, cobalt pools (localized cobalt enrichment), and abnormal carbide growth. These defects can disrupt microstructure homogeneity and lead to performance fluctuations.

5. Phase Boundary and Interface Bonding

Phase Boundary Clarity: The WC-cobalt phase boundary should be sharp, without excessive reaction or impurity segregation. Clear phase boundaries ensure effective stress transfer and prevent interface weakening.

Interface Bond Strength: A strong metallurgical bond must be formed between WC and cobalt. Optimizing the sintering process (such as liquid-phase sintering) can promote wetting of cobalt on WC and enhance interfacial bonding.

6. Residual Stress and Phase Transformation

Residual Stress: During sintering, the difference in thermal expansion coefficients between WC and cobalt (5.5×10⁻⁶/°C for WC and 12.5×10⁻⁶/°C for Co) results in residual stress. Residual compressive stress improves fatigue resistance, but tensile stress may induce cracks.

Phase Transformation: During high-temperature sintering or use, WC may decompose (e.g., WC → W₂C + C), resulting in a decrease in hardness. Phase transformation can be suppressed by controlling the sintering atmosphere (e.g., vacuum or hydrogen).

7. Effect of Additives

Grain Growth Inhibitors: Grain growth inhibitors, such as Cr₃C₂ and VC, can inhibit abnormal WC grain growth, refine the microstructure, and improve hardness and toughness. Solid solution strengthening elements, such as Ti and Ta, can partially dissolve in WC or cobalt, forming a solid solution that improves strength and heat resistance.

Correlation between Microstructure and Properties

Hardness: This is primarily determined by the WC content and grain size. Higher WC content and finer grains result in higher hardness.

Toughness: This is positively correlated with the cobalt content and cobalt layer thickness. Toughness is optimal when the cobalt phase is continuous and of moderate thickness.

Wear resistance: This is influenced by both the hardness of the WC and the toughness of the cobalt phase. Highly hard WC provides wear resistance, while the tough cobalt matrix prevents grain shedding.
